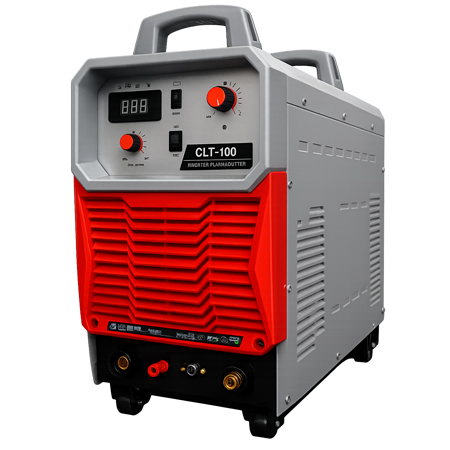

PLASMA CUT 100 is a high performance IGBT inverter based plasms cutting machine designed for heavy duty industrial use. With REAL 100% duty cycle, it delivers consistent cutting power for longer operation without overheating
| Model | PLASMA CUT 100 |
|---|---|
| Input Voltage | 415V AC ±15%, 3 Phase, 50/60 Hz |
| Rated Input Current | 26.5 A |
| Input Power Capacity | 17.5 KVA |
| No Load Voltage | 310 V DC |
| Output Current Range | 20 - 100 A |
| Rated Output Voltage | 120 V |
| Duty Cycle | 100% @ 100A (40°C) |
| Cutting Thickness (Clean Cut) | 35 mm |
| Severance Thickness | 40 mm |
| Efficiency | ≥ 85% |
| Power Factor | 0.93 |
| Protection Class | IP21S |
| Insulation Class | F |
| Dimensions (L x W x H) | 620 x 300 x 540 mm |
| Weight | 28.5 kg |
| Cooling | Forced Air Cooling |
| Gas | Compressed Air |
| Air Pressure | 4.5 - 5.5 Bar |
| Recommended Air Flow | 200 L/min |
